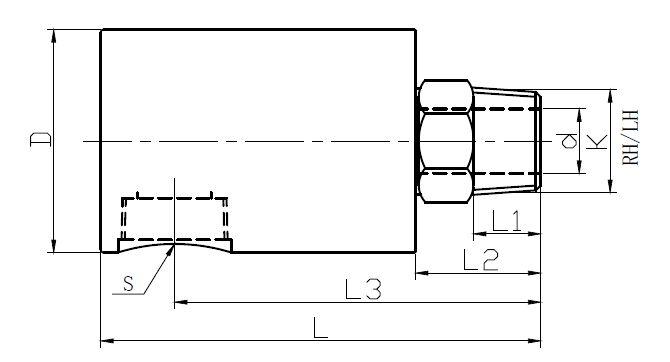

| Nominal | K | S | D | d | L | L1 | L2 | L3 | ||
| 15A | R1/2" | NPT1/2" | R1/2" | NPT1/2" | Φ58 | Φ13 | 121 | 17 | 32 | 104 |
| 20A | R3/4" | NPT3/4" | R3/4" | NPT3/4" | Φ60 | Φ17 | 120 | 18 | 34 | 102 |
| 25A | R1" | NPT1" | R1" | NPT1" | Φ69 | Φ20 | 137 | 21 | 39 | 114 |
| 32A | R1-1/4" | NPT1-3/4" | R1-1/4" | NPT1-1/4" | Φ86 | Φ29 | 164 | 25 | 48 | 138 |
| 40A | R1-1/2" | NPT1-1/2" | R1-1/2" | NPT1-1/2" | Φ97 | Φ34 | 190 | 25 | 57 | 130 |
