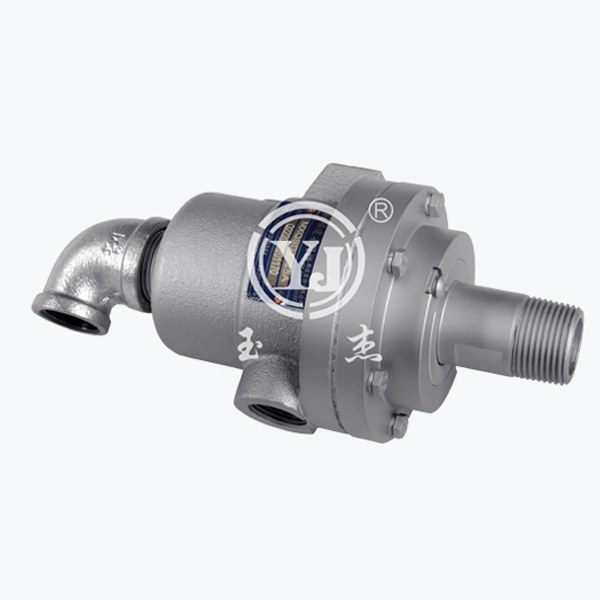

MXQ Rotary Joint (Fixed)

Model：MXQ
Outer pipe：Thread connection or flange connection
Feature：Spherical seal design; Standard antimony or carbon graphite seal technology; Renewable seal plate; carbon guide separation; Improved joint and syphon support; Rotary or stationary siphon compatibility.

Technical Parameter：
Media Hot oil、Steam
Max.Temperature ≤350℃ (Hot oil)、≤220℃ (Steam)
Max.Pressure ≤1.8MPa
Max.Speed 20A-80A≤250rpm; 90A-150A≤100rpm

Product consultation Back to list

Sales Service Hotline：

0595-8686 1188


Model K I O S d L1 L2 L5 L6 L7 L8 L9 M N H SW Flange outer tube size control table
A B C D
20A R3/4" Rc3/4" Rc1/2" Rp1/4" 18 46 104 182 199 96 / 29 M10 / / 24 26 11 24 16
25A R1" Rc3/4" Rc1/2" Rp3/8" 23.5 51 110 195 210 109 / 30 M10 / / 32 34 12 32 18
32A R1-1/4" Rc1" Rc1/2" Rp1/2" 30 51 122 222 238 108 124 23 M10 14 60 41 40 13 38 20
40A R1-1/2" Rc1-1/4" Rc3/4" Rp3/4" 36 62 143 254 278 133 149 22 M10 16 71 46 47.8 13 45 20
50A R2" Rc1-1/2" Rc1" Rp1" 45 71 161 295 312 150 173 45 M12 18 81 55 60 16 57 24
65A R2-1/2" Rc2" Rc1-1/4" Rp1-1/4" 58 76 178 333 357 157 183 58 M12 20 91 70 74 19 70 24
80A R3" Rc2-1/2" Rc1-1/2" Rc1-1/2" 72 81 264 398 424 187 214 52 M12 20 110 85 87 25 84 24

We offer customized products if special sizes.
Specifications are subject to change without notice.
